Variable frequency drive (inverter)

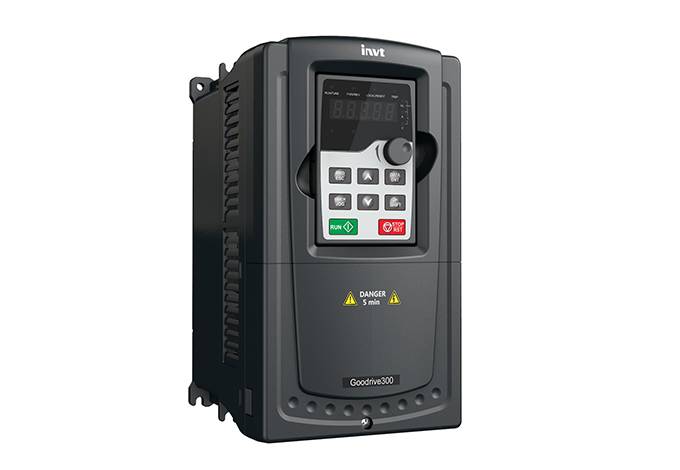

GD300 drives are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent magnet synchronous motors. Applying the most advanced sensorless vector control which keeps pace with the leading international level and 32-bit DSP system, the product enhances its reliability to meet the requirements of environment adaptability, customized and industrialized design with more optimized functions, more flexible applications and more stable performance.
FEATURES
1 Compatible with synchronous and asynchronous motors
2 Up to 0 25Hz 150 starting torque Asnychronous motor 2 5Hz 150 starting torque Synchronous motor
3 Built in braking unit• (1.5~30kW, 400V)• (=18.5kW, 500V)
4 External LED keypad to copy parameters Optional LCD keypad provided
5 Standard C3 filters Optional C2 filters
6 Standard Modbus optional Profibus • Can open and ethernet• Customization products provided: GD310( UL/cUL
APPLICATIONS
Permanent Magnet Synchronous Motor Mine Machine Tools Textile Oil Other Machineries

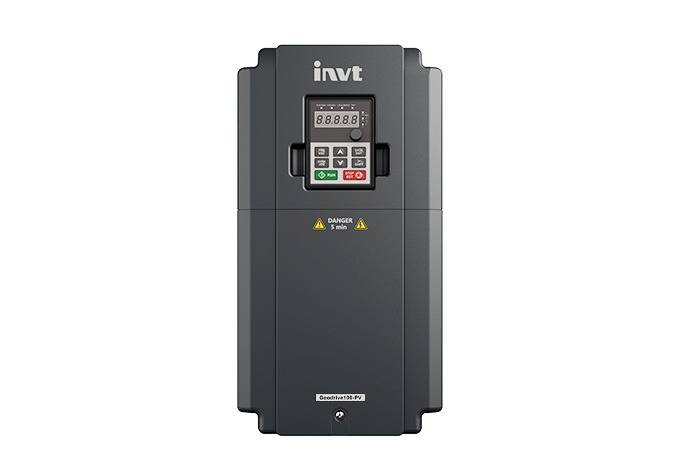

GD100-PV series solar vfd drives are that INVT newly launches specially for solar pumping applications. Based on the original solar pump inverter products, which optimizes the usability and performance, and extends applicable voltage levels and power range of the product. The voltage level can be applied to single phase/three phase 220V, three phase 380V pumps, power range from 0.4kW to 110kW.
Comprehensive voltage level and power range Support single phase/three phase 220V, and three phase
380V solar water pump inverter, power from 0.4kW to 110KW
Easy to use Simply connect the photovoltaic panel to the inverter, no need to set any parameters, and the
PV pump can be automatically started after power-on
Multiple protection measures It has protection functions such as PV over-voltage protection, PV polarity reverse connection alarm, over-temperature automatic derating, etc., which can effectively extend the life of the product
Advanced MPPT algorithm Ensure solar power tracking efficiency can reach 99%
Boost module2.2KW and below models can be equipped with boost module to meet the needs of low voltage operation, which can reduce solar panel configuration and reduce user system cost
GPRS remote monitoring Supports optional GPRS module, which can realize remote monitoring function of computer webpage and mobile APP
AC/DC switching scheme All series of products can realize automatic switching of PV DC input and grid
AC input, which can meet 24 hours of no care work
FEATURES
1 Compatible with synchronous and asynchronous motors
2 Up to 0 25Hz 150 starting torque Asnychronous motor 2 5Hz 150 starting torque Synchronous motor
3 Built in braking unit• (1.5~30kW, 400V)• (=18.5kW, 500V)
4 External LED keypad to copy parameters Optional LCD keypad provided
5 Standard C3 filters Optional C2 filters
6 Standard Modbus optional Profibus • Can open and ethernet• Customization products provided: GD310( UL/cUL
APPLICATIONS
Permanent Magnet Synchronous Motor Mine Machine Tools Textile Oil Other Machineries

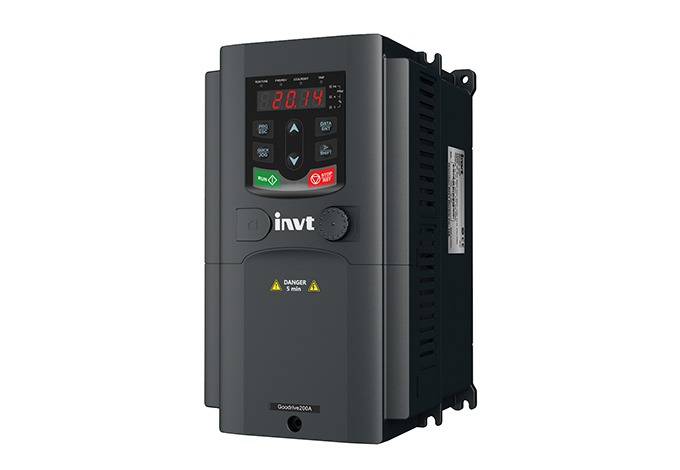

Based on DSP control system, INVT GD200A drives apply V/F vector control and various protections to control asynchronous motors. The air duct, hardware and software have been greatly improved for better environment adaptability, operation and reliable quality certificated by TÜV SÜD.
HIGH PERFORMANCE
1.More Accurate Motor Autotuning
2.Advanced open loop vector control
3.Perfect voltage and current control, reducing the fault protection times
4.Multiple braking modes and instant stopping
5.0.75kW~500kW(Three Phase 400V)
FEATURES
1.VF and Sensorless Vector Contro
2.Up to 0.5Hz/150% starting torque
3.Built-in braking unit (=30kW), Optional external braking unit (=37kW)
4.External LED keypad to copy parameters(=18.5kW), Standard membrane keypad design(=15kW), Optional LCD keypad provided
5.Standard C3 filters; Optional C2 filters
6.Accurate parameters auto tuning and better motor drive
7.Simple water supply function
8.Support G/P dual rating
9.Customization services provided (like PTC )
10.CE requirements certified
APPLICATIONS
Air Compressor, Oil, Warming and Water Supply, Plastics Machine, Mine, Fans and Water Pumps.
