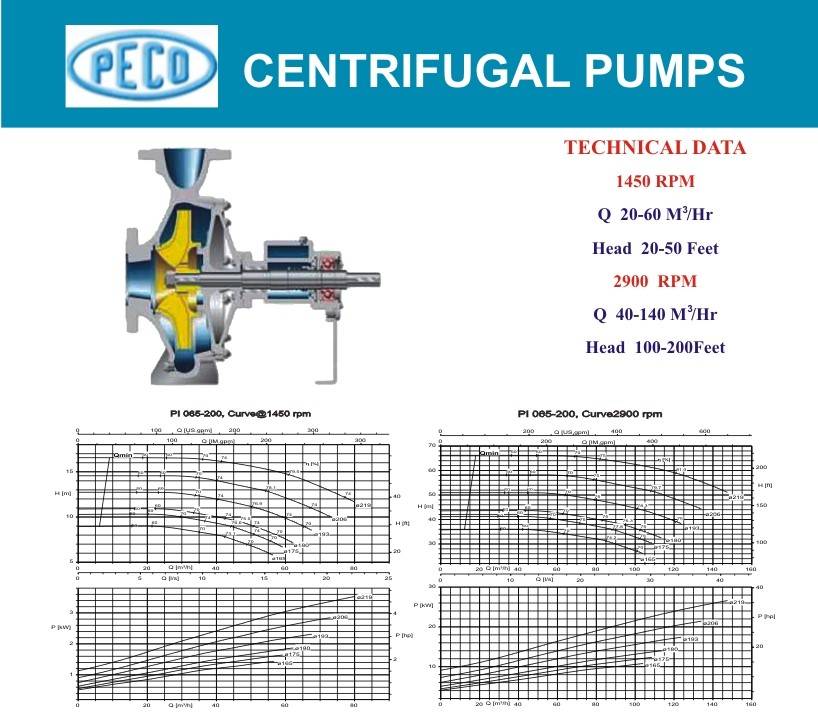

Centrifugal Pump





Centrifugal Pump


Features:


1) Service Friendly and Water Resistant(Replaceable wear ring)
2) Energy Saving( Optimized hydraulics with high efficiency)
3) Versatile (Wide selection of materials for all fields of application)
4) Durable (Sturdy Bearing assembly)
5) Standard-Compliant (Connection dimension and rating as per EN 733)
6) Economical and maintenance free
7) Easy to dismantle (Back pull our design ,pump casing remains in the pipeline)
Reliable (Rated up to 100 bar Pressure)



Applications:

1) Municipal water supply
2) Cooling Tower
3) Drip Irrigation
4) Fire fighting
5) Swimming Pool
6) Irrigation System
7) Water Filtration Plant
8) Industrial Pump
9) Farming
10) Mining
11) Textile Mill
12) Automotive Industries
13)Chemical Industry
14) Paper Industry

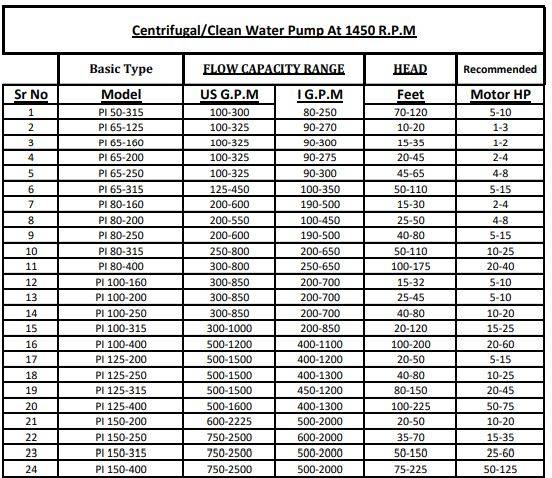

Pump Model:
PI 32-160 ( 2” by 1.25” ) Size
PI 32-200  ( 2” by 1.25”)
PI 40-200  ( 2” by 1.5” )
PI 40-250 (2” by 1.5”)
PI 50-160 (2” by 2 ½”)
PI 50-250 ( 2” by 2 ½”)
PI 50-315 (2” by 2 ½”)
PI 65-200 ( 2 ½” by 3”)
PI 80-160 ( 3” by 4”)
PI 80-200 ( 3’ by 4”)
PI 80-250 ( 3” by 4”)
PI 80-315 (3” by 4”)
PI 100-200 (5” by 4”)
PI 100-250( 5” by 4”)
PI 100-315 (5” by 4”)
PI 125 200 (6” by 5”)
PI 150-315 (6’ by 6”)
PI 150-315  (6” by 6”)
PI 150-400 ( 6” by 6”)
PI 125-400 (6” by 5”)
PI 200-315 (8” by 8”)
PI 300-350 ( 12” by 12”)
PI 300-500 ( 12” by 12”)

Pump upto 20” by 20 “ Available
Material Specifications:

1) Grey Cast Iron
2) Stainless Steel
3) Bronze
4) Duplex-Steel

Address:19-Umer Market opposite JS bank Railway Road near Brandeth Road,Lahore
https://pumpwellco.com/
Website:


PWC Deals in:
All Types of Water Pump, Vacuum Pump, Gear Pump, Multistage Pump, Submersible Pump, Liquefied Petroleum Gas Pump, Compressor,  Deep Ell Turbine, DZAS Pump, Split Casing Pump, Jockey Pump, Food Grade Fristum Pump, Vertical Hallo Shaft Motor, Horizontal Foot Mounted Motor (IE-2), Fire Fighting Pump, Self Priming Pump, Gear Oil Pump,Acid/Chemical Pump, Juice Circulation Pump, Solar Pump, Pressure Booster Pump, Explosion Proof Motor, Diesel Engine Self Start, Submersible Drainage/Sewage Pump, Monoblock Pump ,Siemens Electric Motor, Diesel Pump, Petrol  Pump, Waster Water Pump, Boiler Feed Pump , Electric Motor , Submersible Motor ,Gear Motor, Inverter(VFD) are available. (Imported as well)

CENTRIFUGAL PUMP

Features:

  • Service Friendly and Water Resistant(Replaceable wear ring)
  • Energy Saving( Optimized hydraulics with high efficiency)
  • Versatile (Wide selection of materials for all fields of application)
  • Durable(Sturdy Bearing assembly)
  • Standard-Compliant(Connection dimension and rating as per EN 733)
  • Economical and maintenance free
  • Easy to dismantle(Back pull our design ,pump casing remains in the pipeline)
  • Reliabe(Rated up to 100 bar)

Applicatins:

  • Municipal water supply
  • Cooling Tower
  • Drip Irrigation
  • Fire fighting
  • Swimming Pool
  • Irrigation System

Material Specifications:

  • Grey Cast Iron
  • Stainless Steel
  • Bronze
  • Duplex-Steel
